Custom Temporary Fence Panels
HeslyFence custom temporary fencing are best suited for the resource and hire industries, which can be customize different specifications according different applications.
They all comply with A.S. 4687-2007 for Temporary Fencing & Hoardings to withstand the harshest environments and high corrosive environments.

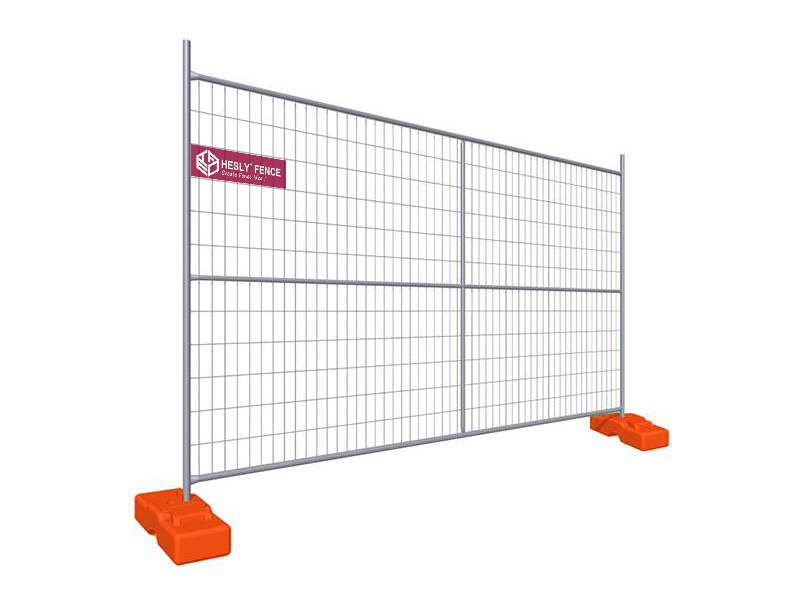

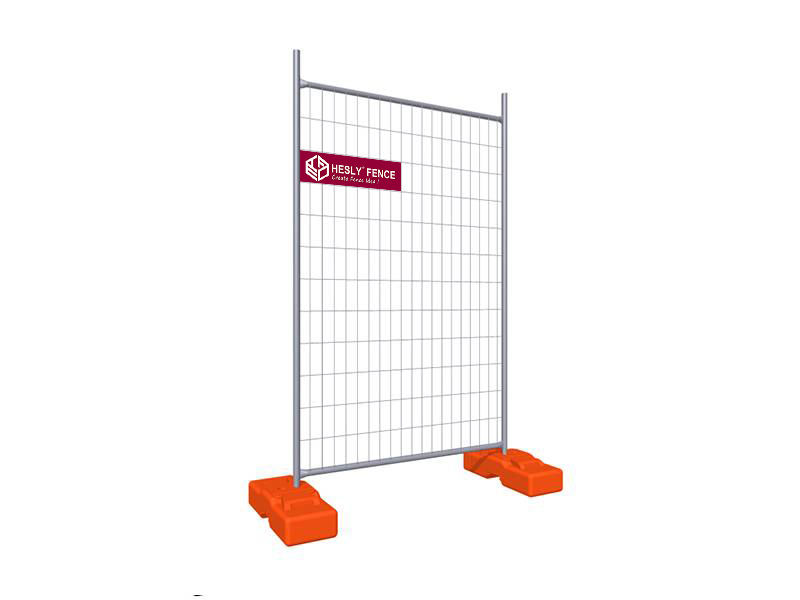

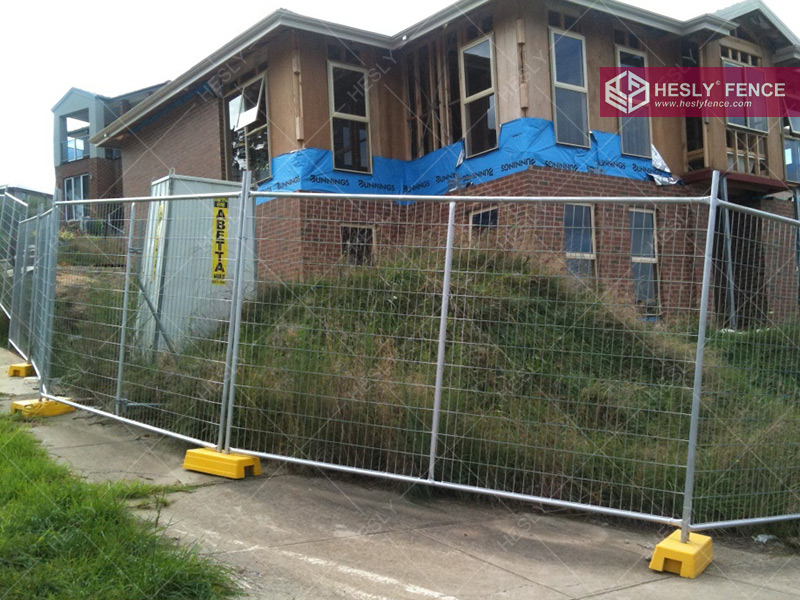

Temp Fence Panels

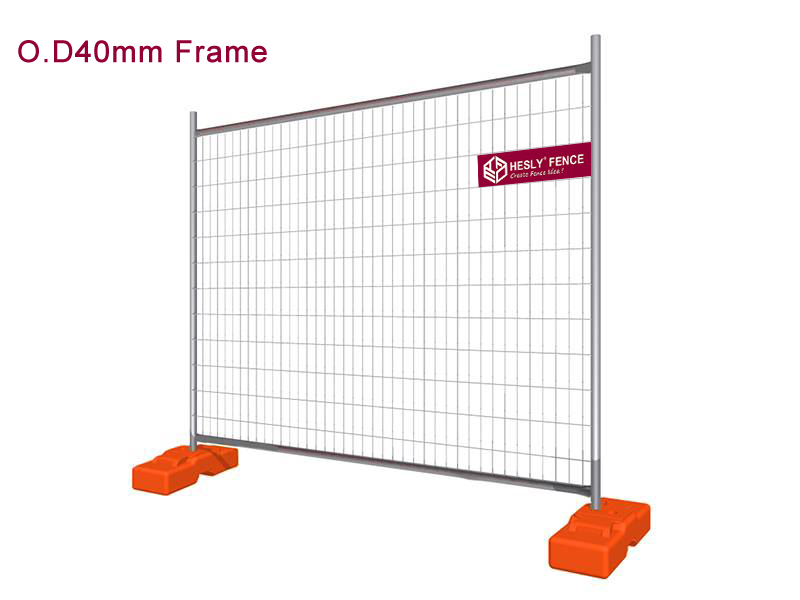

Our Temp Fence Panels are made of a round steel tubes frame and welded mesh with anti-climb mesh opening infill. The welded wire mesh is welded in the middle of the frame not just welded on the side surface of the frame. This processing technology make the fence panels more smooth and durable.
STRONG & SAFE WELDED STRUCTURES
- 360° full welding. 360° full welding technology contributes strong infill mesh and frame structure. It can prevent fracture during its long service life.

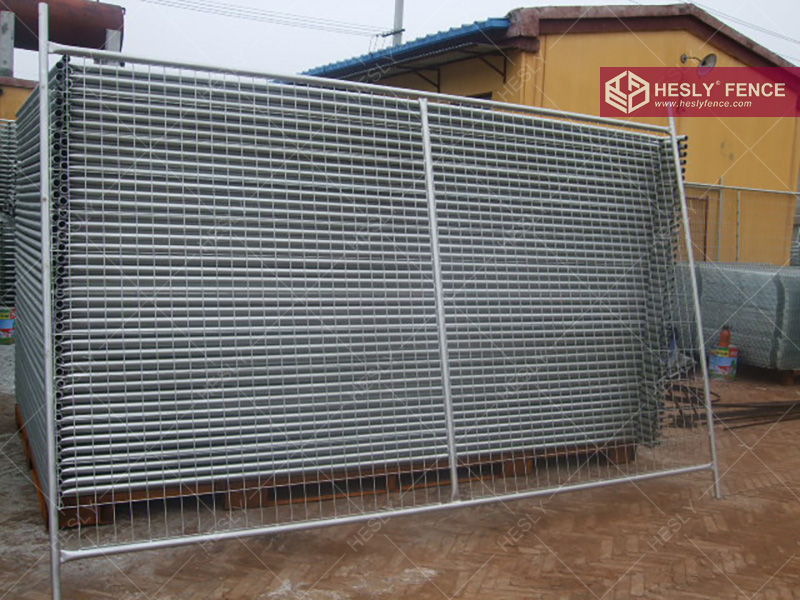

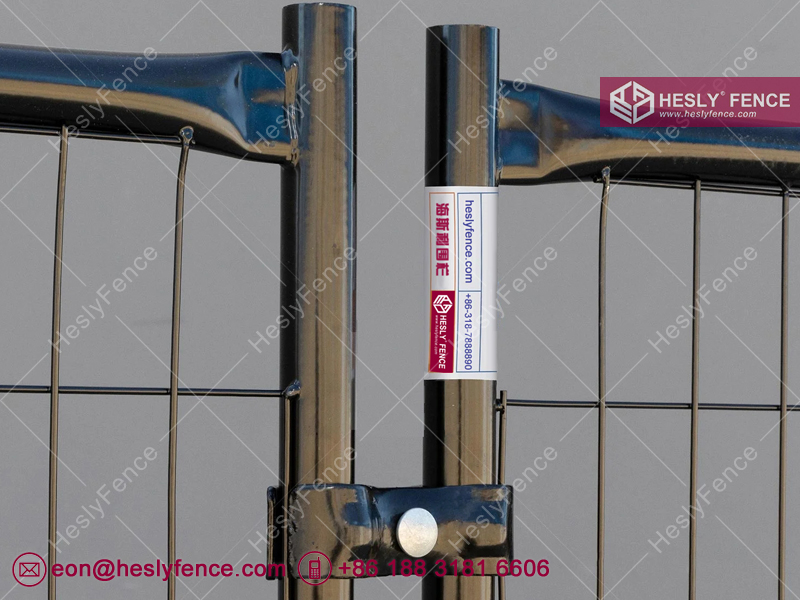

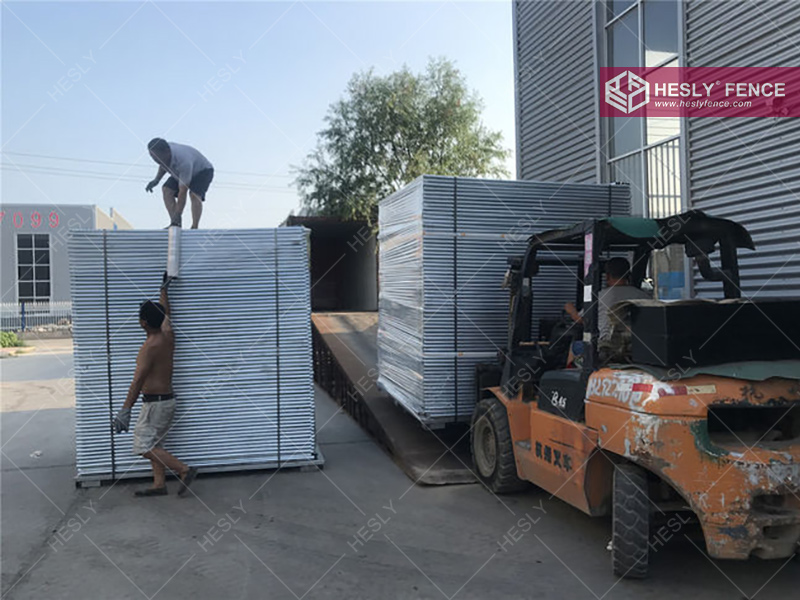

- Flattened Horizontal Pipe Ending. For the steel pipe frame, Both the ending of the top and bottom horizontal pipes will be flattened. In this way, it can save some spaces during transporting. So a full container can load approx. 1/3 more than without flattened ending panels.
- No burrs. Additional, all the weld points will be treated to eliminate small burrs. In this way, we can ensure safety loading, unloading and installation. It can protect peoples from accident injuries when they contact with temporary fencing panels.
-
Anti Climb Welded Wire Mesh Infill. we make the welded mesh with anti climb mesh opening as per AS4687-2007. That is 60x150mm center to center.
|
|
|
|
360° Welding |
Flatten Ending |
No Burrs |
Smooth Welded Mesh |
Associated Pedestrian Gate
The temporary fencing system is supplied with matching gates using the same anti-climb mesh infill as the fence. Single or double-swing can be manufactured on request with temporary fence panels infill.
Different Coating Technique and Colors
Pre-galvanized – Economical but efficient

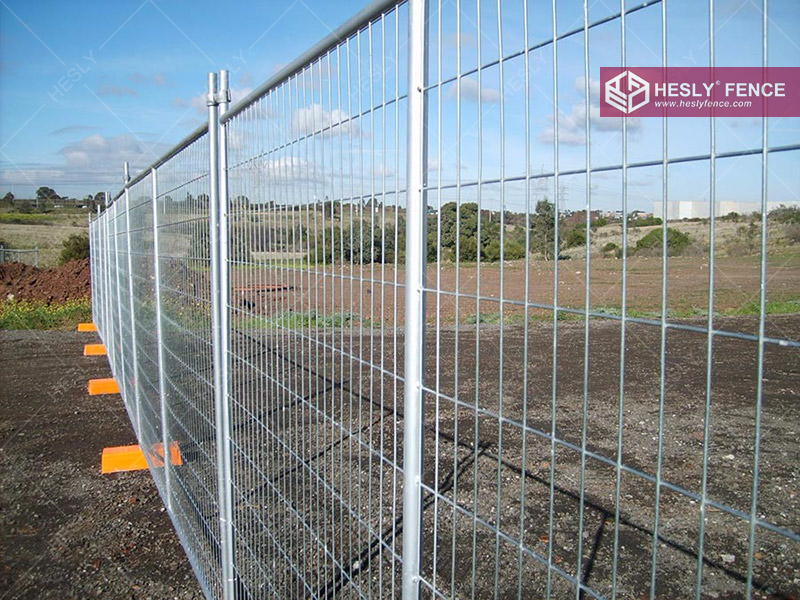

Galvanized steel wires and steel pipes will be welded together and the weld points which the zinc coating is broken during welding will be treated with galvanization spraying. Weld points on the steel pipe will be painted with antirust paint and then galvanization spraying. This finish type can ensure at least 42 micron zinc coating thickness, which can satisfy normal applications.
Hot dipped galvanized after welding – More stable & Anti-corrosive
The raw material of temporary fencing panel, including steel wires and steel pipes are low carbon steel. They will be welded together in 360° full welding. Then the temporary fencing will be dipped in the container full of hot galvanization. In this way, each parts of temporary fencing can be coated with zinc evenly to ensure the long service life.
The hot dipped galvanized temporary fencing can ensure at least 90 microns zinc coating. It is suitable for high corrosive areas.

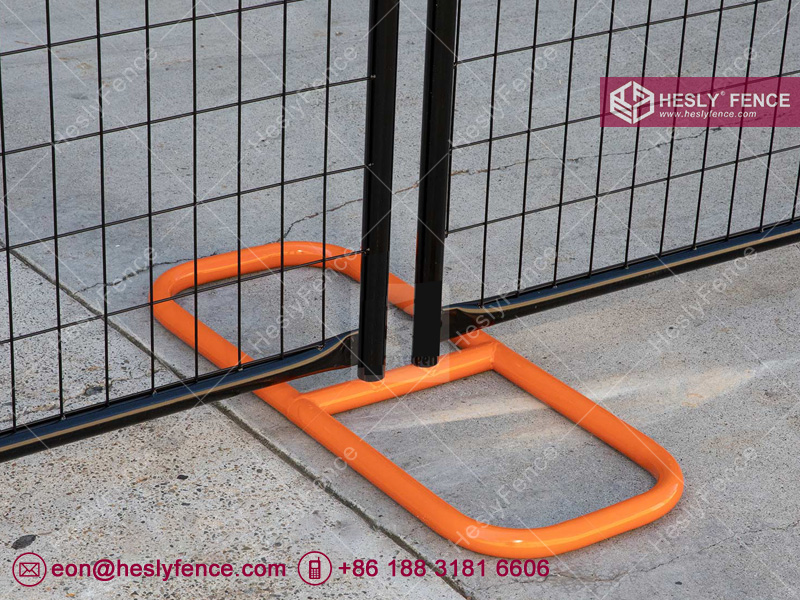

Powder Coated with highlight colors.

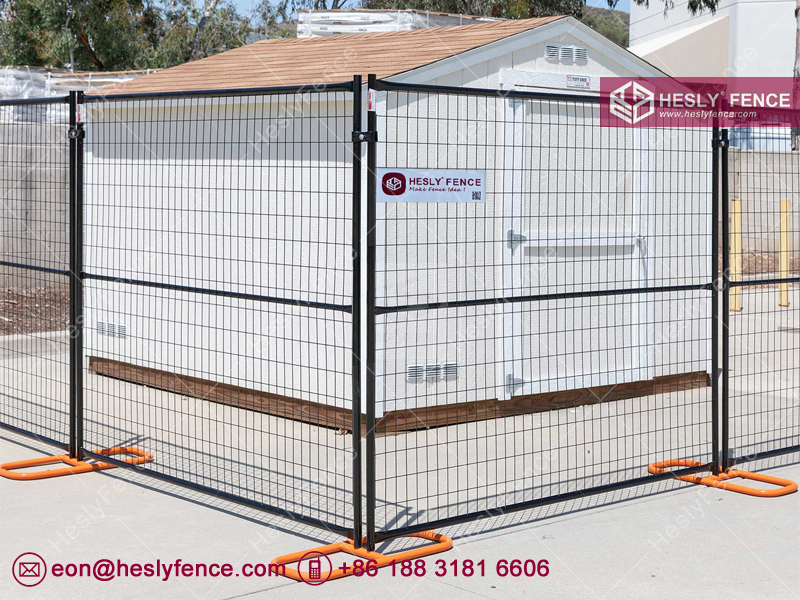

Our temp fence panels are also available powder coated for excellent appearance and more long life protection. The popular color is Green RAL 6005, Orange RAL 2009, Yellow RAL 1026 and other RAL colors are available on request.
